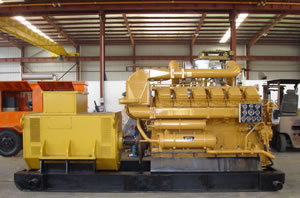

Chinese Generator Set
Description of Chinese Generator Set
1. The genset adopt the Xinchai/ New Holland/ WD-Power/ JDEC series diesel engine;
2. It is equipped with some famous brushless excitation alternators (Marathon, Stamford, LanZhou etc.) and intelligent control panels.
3. The diesel generator set has auto protective device, enabling it to control and protect the water temperature, oil temperature, oil pressure, and the speed.
4. These generator sets can be combined as power station group with automatic start system and ATS, etc. upon customer's request.
Advantages of Chinese Generator Set
1. Automatic speed regulation;
2. Automatic voltage regulation;
3. Outstanding dynamic performance;
4. Stable fluctuation form of voltage;
5. Increased efficiency and reliability, extended service life, etc.
Main Specifications of Chinese Generator Set
| 50/60Hz, 230V/400V, 20kVA - 1875kVA | ||||||||
| Generator Set Model | Engine Model | Alternator Model | Frequency (Hz) | Prime Power | Standby Power | |||
| kW | kVA | kW | kVA | |||||
| XinChai Engine with Marathon(Sino-USA) Alternator | ||||||||
| RXM16 | NC485BD | GM-16-4 | 50 | 16 | 20 | 18 | 23 | |
| RXM20 | C490BD | GM-20-4 | 50 | 20 | 25 | 22 | 28 | |
| RXM30 | A498BD | GM-30-4 | 50 | 30 | 38 | 33 | 41 | |
| SDEC/New Holland Engine with LanZhou Alternator | ||||||||
| RNL20 | 395AD-13 | GM-20-4 | 50 | 20 | 25 | 22 | 28 | |
| RNL24 | 495AD-5 | GM-24-4 | 50 | 24 | 30 | 26 | 33 | |
| RNL30 | 495AZD-5 | GM-30-4 | 50 | 30 | 38 | 33 | 41 | |
| RNL30-1 | 4100AD | GM-30-4 | 50 | 30 | 38 | 33 | 41 | |
| RNL50 | 4135D-1 | MP-50-4 | 50 | 50 | 63 | 55 | 69 | |
| RNL50-1 | SC5D108D | MP-50-4 | 50 | 50 | 63 | 55 | 69 | |
| WD Power Engine with Marathon(Sino-USA) Alternator | ||||||||
| RWM350 | WD269TWD41 | MP-400-4 | 50 | 350 | 438 | 400 | 500 | |
| RWM450 | WD269TWD51 | MP-500-4 | 50 | 450 | 563 | 500 | 625 | |
| RWM550 | WD278TA61L | MX-600-4 | 50 | 560 | 700 | 600 | 750 | |
| JDEC Engine with Marathon(Sino-USA) Alternator | ||||||||
| RJM650 | 8190ZLC | MX-700-4 | 50 | 650 | 813 | 700 | 875 | |
| RJM700 | Z12V190B | MX-700-4 | 50 | 700 | 875 | 770 | 963 | |
| RJM750 | Z12V190BD2 | MX-800-4 | 50 | 750 | 938 | 800 | 1000 | |
| RJM900 | G12V190ZL1 | MX-900-4 | 50 | 900 | 1125 | 990 | 1238 | |
| RJM1000 | A12V190ZL | MX-1030-4 | 50 | 1000 | 1250 | 1100 | 1375 | |
| RJM1500 | H12V190ZL | MX-1540-4 | 50 | 1500 | 1875 | 1650 | 2063 | |
