Leroy Somer Alternator

The RISE Power Leroy Somer alternator is specially designed and adapted for applications in marine industry, rental and telecommunications, to name a few.
The Leroy Somer Alternator (LSA) is compliant with the international standards and regulations, such as IEC 60034, NEMAMG 1.22, ISO 8528/3, CSA, UL 1446, marine regulations, and more. Moreover, it is designed and manufactured in an ISO9001 certified environment.

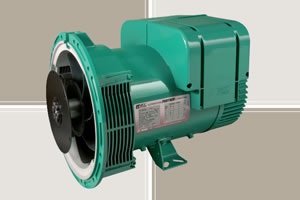

Leroy Somer Alternator

Superior Electrical Performance
1. Class H insulation
2. Standard 12-wire re-connectable winding, 2/3 pitch, type no.6.
3. Voltage range:
50Hz: 220V-240V and 380V-415V (440V)
60Hz: 208V-240V and 380V-480V
4. High efficiency and motor starting capacity
5. Other voltages are possible with optional windings:
-50Hz: 440V (no.7), 500V (no.9), 690V (no.10 or 52)
-60Hz: 380V and 416V (no.8), 600V (NO.9)

6. Total harmonic distortion is less than 2 %( full load).
7. R 791 interference suppression conforming to standard EN 55011 group 1 class B standard for European zone (CE marking)

Excitation and Regulation System Suited to the Application

Excitation system Regulation options
Voltage regulator(AVR) SHUNT AREP C.T. Current transformer for connecting modules in parallel R731 3-phase sensing P Renmole voltage potentiometer
R220 Std - - - -
R438 Std

(AVR voltage accuracy ±1%: - ; Possible adaptation: √)

Protection System
1. The protection level of Leroy Somer Alternator (LSA) 40 is IP23.
2. The Leroy Somer Alternator has standard winding protection for clean environment with relative humidity ≤95%, inclusive of marine environment.

Options
Filters on air inlet and air outlet (IP44);
Winding protection for harsh environments with relative humidity greater than 95%;
Space heaters;
Thermal protection for stator windings.

Reinforced Mechanical Structure Using Finite Element Modeling
1. Compact rigid assembly to better withstand generator vibrations.
2. Steel frame
3. Twin-bearing and single-bearing versions designed to be suitable for commercially-available heat engines.
4. Half-key balancing
5. Permanently greased bearings.
6. Standard direction of rotation: clockwise when looking at the drive end.

Accessible Terminal Box
1. Easy access to the AVR and to the connections.
2. 8-way terminal block for reconnecting the voltage.
3. Predrilled holes for cable gland.

Copyright 2004: MOTEURS LEROY-SOMER
LEROY-SOMER reserves the right to modify the design, technical specifications and dimensions of the products shown in this document. The descriptions cannot in any way be considered contractual. The values indicated are typical values.

Guangdong RISE Power Equipment Inc. is a professional Leroy Somer alternator supplier in China. ISO9001:2000 certified, our company has gained much experience in supplying quality alternators and generator sets. In addition to the Leroy Somer alternator, we also provide Marathon alternator, Stamford alternator, and a variety of generator sets, such as VOLVO generator set, MAN generator set, John Deere generator set, and MTU generator, to name a few. Our alternators and generator sets feature reliable quality, stable performance, safety and durability. That is why our products are so popular in the global markets. Located in Guangzhou, our company has easy access to complete infrastructure, developed trade, and convenient transportation, which help to decrease shipping charges of our customers. We at RISE Power welcome you to contact us and try our equipment. We are confident that you will be satisfied with our high quality competitively priced products.
