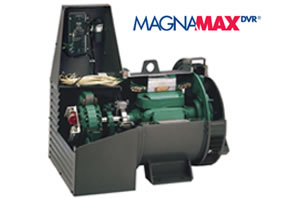

Marathon Alternator

7. This electric generator is ideal for voltage critical applications such as:
Telecommunication Networks       Hospitals       Computer Centers       Commercial Buildings       Airports

Features of Marathon Alternator
1. 4 pole units available are 50 / 60 hz.
2. Engine adapters are available from SAE 3 to SAE 00 with coupling discs from SAE 8 to SAE 21. Special adapters and couplings are also available.
3. IP-22 and IP-23 protection available from stock.
4. Stock units are twelve lead and re-connectable to the voltage you required (are available to 6600 volts).
5. This electric generator is designed and manufactured for easy paralleling with utilities or with other generators. All units deliver 2/3 pitch and low harmonics and are supplied with a PMG to provide isolation of the voltage regulators power from the load induced distortion.
6. A Class H insulation system is recognized under UL1446 and is suitable for submission to UL2200 application approval.
7. Large conduit box offers ample space for easy connections and allows load line entry from all directions.

Main Specifications of Marathon Alternator
